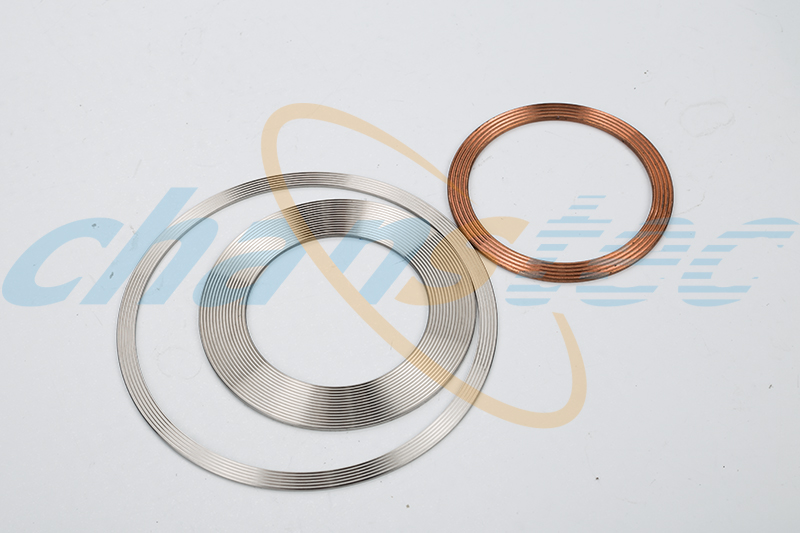

CHANSTEC Kammprofile Gasket provide exceptional reliability in difficult applications. Kammprofile Gasket accommodate standard ASME flanges as well as non-standard flanges including lighter weight flanges, valves, pumps, flanges, heat exchangers and vessels. CHANSTEC Kammprofile Gasket are also an excellent choice for old, worn heat exchangers originally designed for jacketed gasket. The Kammprofile gasket handles pressures from full vacuum to the maximum rating of the flange and withstands temperatures from cryogenics to 2000°F / 1090°C, depending on sealing material and metal core.
Materials:
Surface material: flexible graphite, PTFE, mica, silver, aluminum and the like.
Metal core material: 316L, 304, 304L, 321, 316Ti, Monel, Inconel, Incoloy, Hastelloy, titanium and the like.

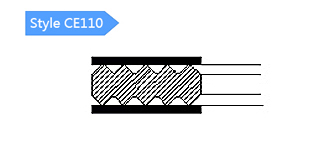

Style CE110
|
Serrated solid metal core
|

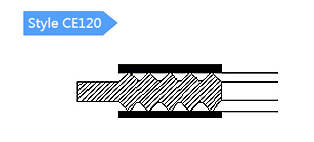

Style CE120
|
Serrated solid metal core with integral outer ring
|

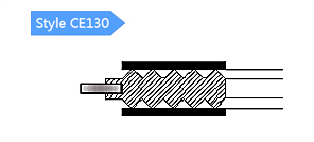

Style CE130
|
|
Serrated solid metal core with loose centering ring
|
|
|
